How this guide helps you, the process engineer

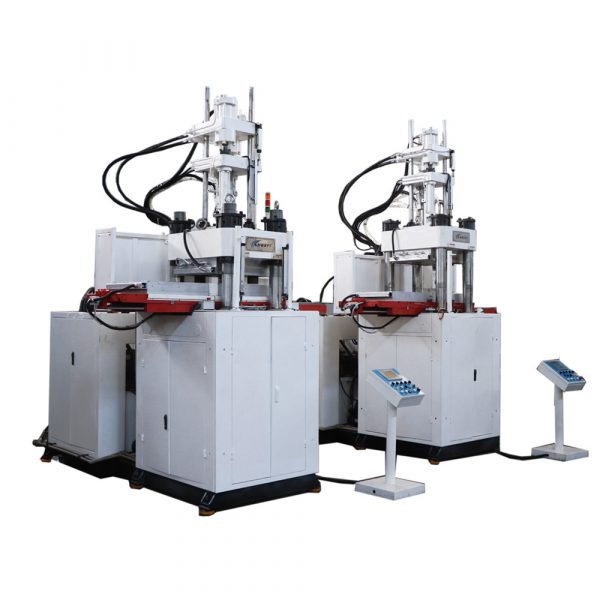

As a polymer process engineer focused on reliable outcomes, you need clear criteria for machine selection that reflect part requirements rather than marketing claims. This guide concentrates on two decisive factors—clamping force and shot accuracy—while also addressing ancillary elements such as injection unit sizing and mold temperature control. Early on it helps to survey available platforms, for example when comparing a dedicated lsr molding machine against more general-purpose systems; similarly, consider the demands that a silicone rubber molding machine places on process controls. The intent is practical: give you a shortlist of measurable specs to request during vendor evaluation.
Primary technical priorities: clamping force and shot accuracy
Clamping force must match projected part area and flash tolerance. Specify clamping force with a safety margin—typically 20–30% above calculated clamp load to handle variations in mold venting and thermal expansion. Shot accuracy relates directly to part weight consistency and function; target a volumetric repeatability better than ±0.5% for medical or automotive silicone components. Include injection unit stroke monitoring and closed-loop servo controls in your spec sheet so that shot-to-shot variation is traceable. These requirements affect material handling, cure time, and cycle stability, and they determine whether a machine will achieve your expected yield.
Process controls and ancillary systems that matter
Precise temperature control of the mold and shot timing influence cure behaviour and final properties. Specify independent zone control for mold temperature and a dedicated dosing path for LSR to prevent cross-contamination. Integration of in-line sensors for pressure and position allows closed-loop adjustments to maintain shot accuracy during long production runs. Balance energy-efficient heaters and rapid cooling channels against any extra capital expense; a pragmatic approach favours machines whose thermal systems are serviceable and documented.
Common specification mistakes—and a quick aside
Engineers often under-spec the injection unit, choosing a unit sized only for current part geometry rather than future variants. Another recurring issue is ignoring maintenance access when listing technical requirements. Vendors that quote only peak clamping force without providing cage stiffness or platen rigidity data should be treated cautiously. —A short aside: small layout details, like access to tie-rods and the pump, cut downtime significantly over the first year.
Selection checklist and comparative view
Use a structured checklist during vendor assessment. Include: verified clamping force curve, documented shot repeatability figures, control architecture with closed-loop servo drives, and service support in your region. Compare machines on measured performance, not just nameplate numbers. If batch traceability matters, require integrated part-level data logging. When evaluating alternatives, weigh modularity: some platforms let you replace dosing modules to accommodate different viscosities of LSR without replacing the whole machine.
Advisory close: three golden rules for choosing the right machine
1) Metric rule: Demand certified performance data for clamping force vs. platen deflection and shot repeatability under production conditions. These are the figures that predict whether parts will meet tolerance after scale-up. 2) Compatibility rule: Ensure the injection unit, dosing system, and control software explicitly support LSR processing and have spare-part availability in your supply area; standards like ISO 9001 or ISO 13485 are common anchors for medical suppliers. 3) Service rule: Require a clear service plan and local technical support windows to match your production shifts—downtime cost exceeds machine cost differences quickly.
These rules keep decision-making grounded in measurable risk reduction and align procurement with long-term process stability. For a practical partner that combines domain-focused machines and local support, the value evident in HWAYI evolves from specification to sustained output: HWAYI. Precision assured.
